Extract a ROI Example

0 ratings | 0.00 out of 5
Print

Overview

Signal Processing Resource Center » Vision Development Module Image Processing Examples » Extract a ROI Example

This example shows how to extract one region of an image into a new image.

Learn more about common image processing algorithms and see case studies at Analysis in Machine Vision Applications

Front Panel

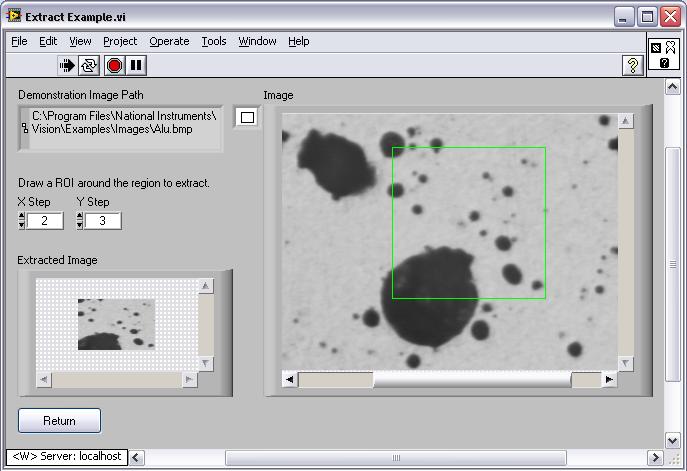

This is a picture of the VI's front panel. To view the block diagram and additional documentation, download the attached file.

This example requires LabVIEW and is included with the Vision Development Module. Download the LabVIEW Evaluation and the Vision Development Module Evaluation to try this example. After installing the software, open LabVIEW and navigate to Help » Find Examples... » Toolkits and Modules.


[+] Enlarge Image
