Line Profile

1 ratings | 5.00 out of 5
Print

Overview

Signal Processing Resource Center » Vision Development Module Image Processing Examples » Line Profile

This example shows how to use the display tools to draw a line on the window that displays an image and get the pixel values of the image along that line (line profile). You typically use line profiles in inspection and gauging tasks to find the edges of an object or part being inspected.

Learn more about common image processing algorithms and see case studies at Analysis in Machine Vision Applications

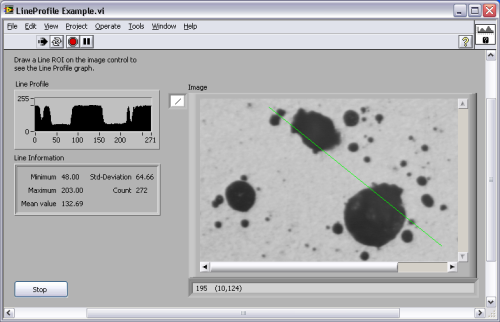

Front Panel

This example requires LabVIEW and is included with the Vision Development Module. Download the LabVIEW Evaluation and the Vision Development Module Evaluation to try this example. After installing the software, open LabVIEW and navigate to Help » Find Examples... » Toolkits and Modules.
