Read Image File Example

0 ratings | 0.00 out of 5
Print

Overview

Signal Processing Resource Center » Vision Development Module Image Processing Examples » Read Image File Example

This example shows how to open, read, and display images in NI Vision. The image control is in Snapshot mode so when you dispose the image, the control image stays in memory. This example also shows structures in LabVIEW such as While Loops, Case structures, shift registers, and so on.

Learn more about common image processing algorithms and see case studies at Analysis in Machine Vision Applications

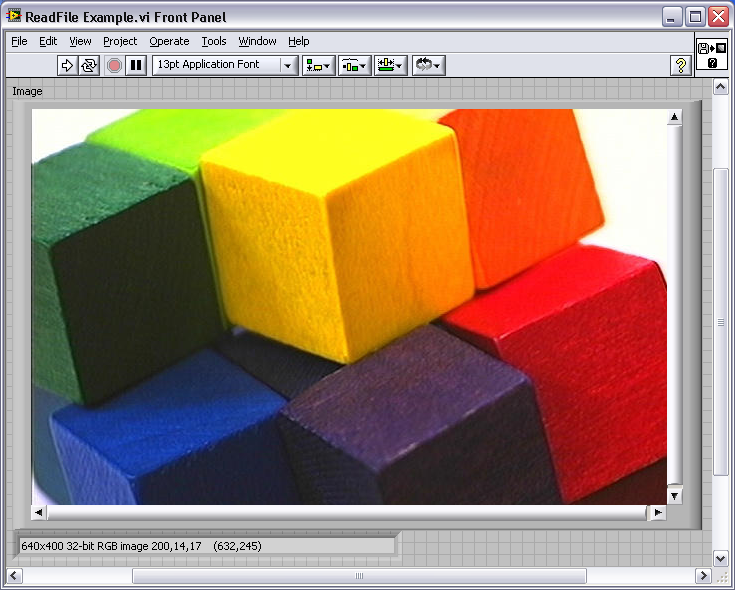

Front Panel

This example requires LabVIEW and is included with the Vision Development Module. Download the LabVIEW Evaluation and the Vision Development Module Evaluation to try this example. After installing the software, open LabVIEW and navigate to Help » Find Examples... » Toolkits and Modules.


[+] Enlarge Image
